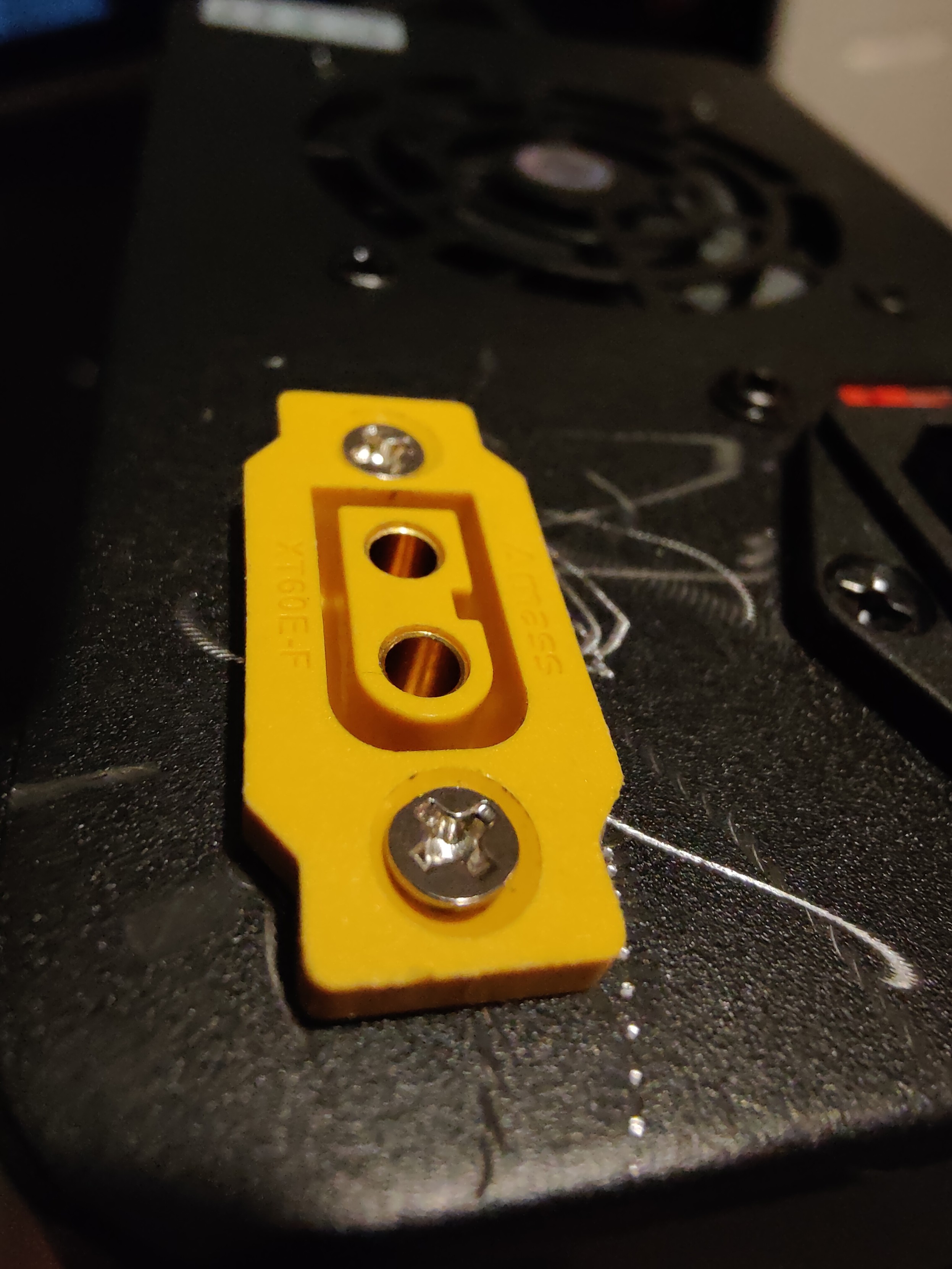

not my cleanest work with the dremel but it got the job done.

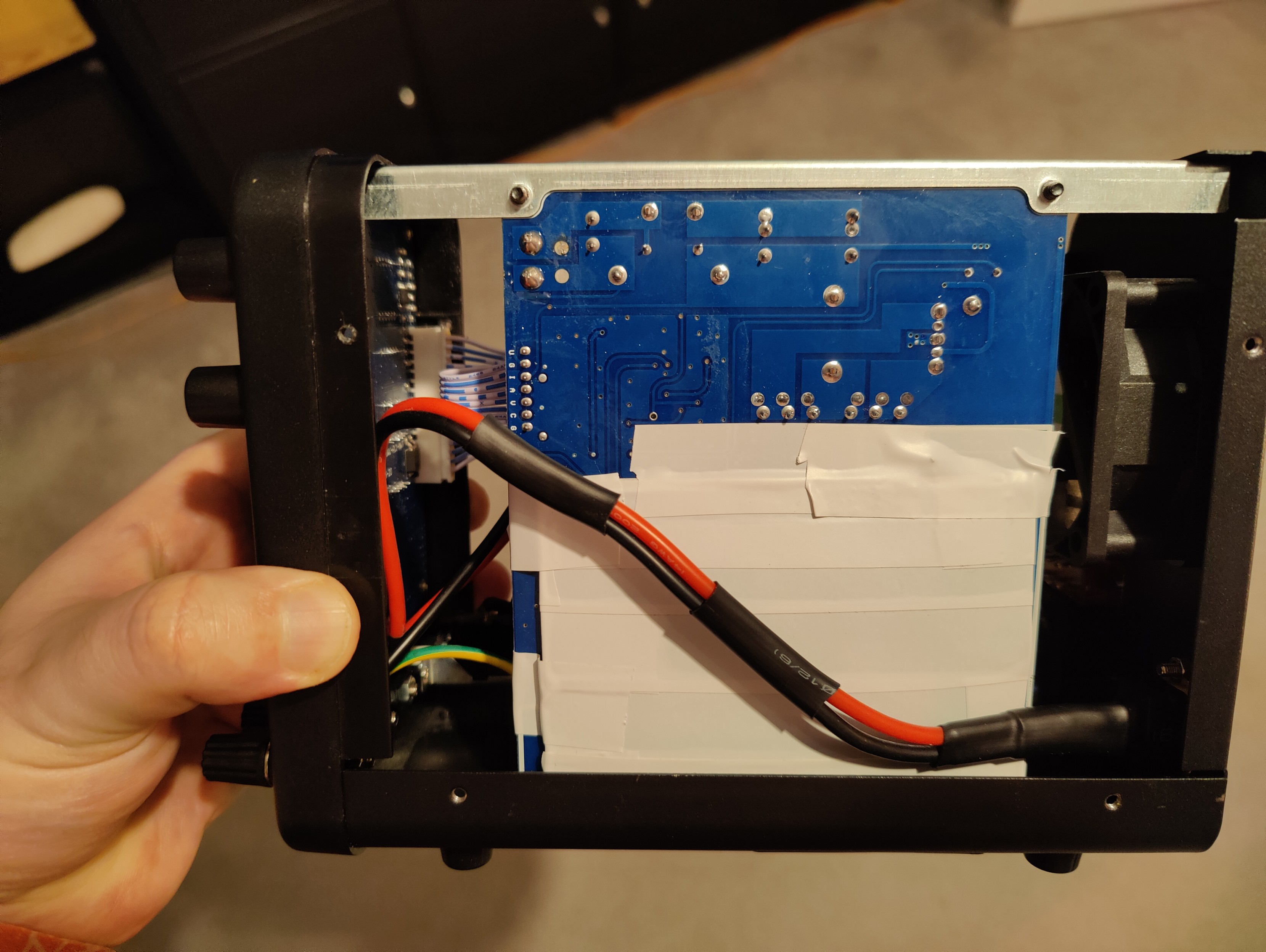

noticed that the strain relief on the XT60 caused it to press into the backside of the HV area, so I laminated a piece of card with electrical tape and placed it between them for additional isolation. I wanted to use polyamide but couldn't find my wider tape. plenty of insulation between the HV and these lines though.
