I guess I have finally disproven my long-held assumption that an MLCC's ESR is "approximately zero" 😅

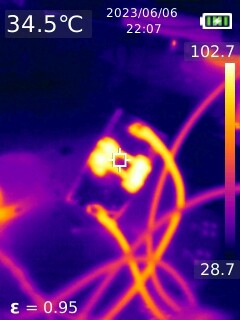

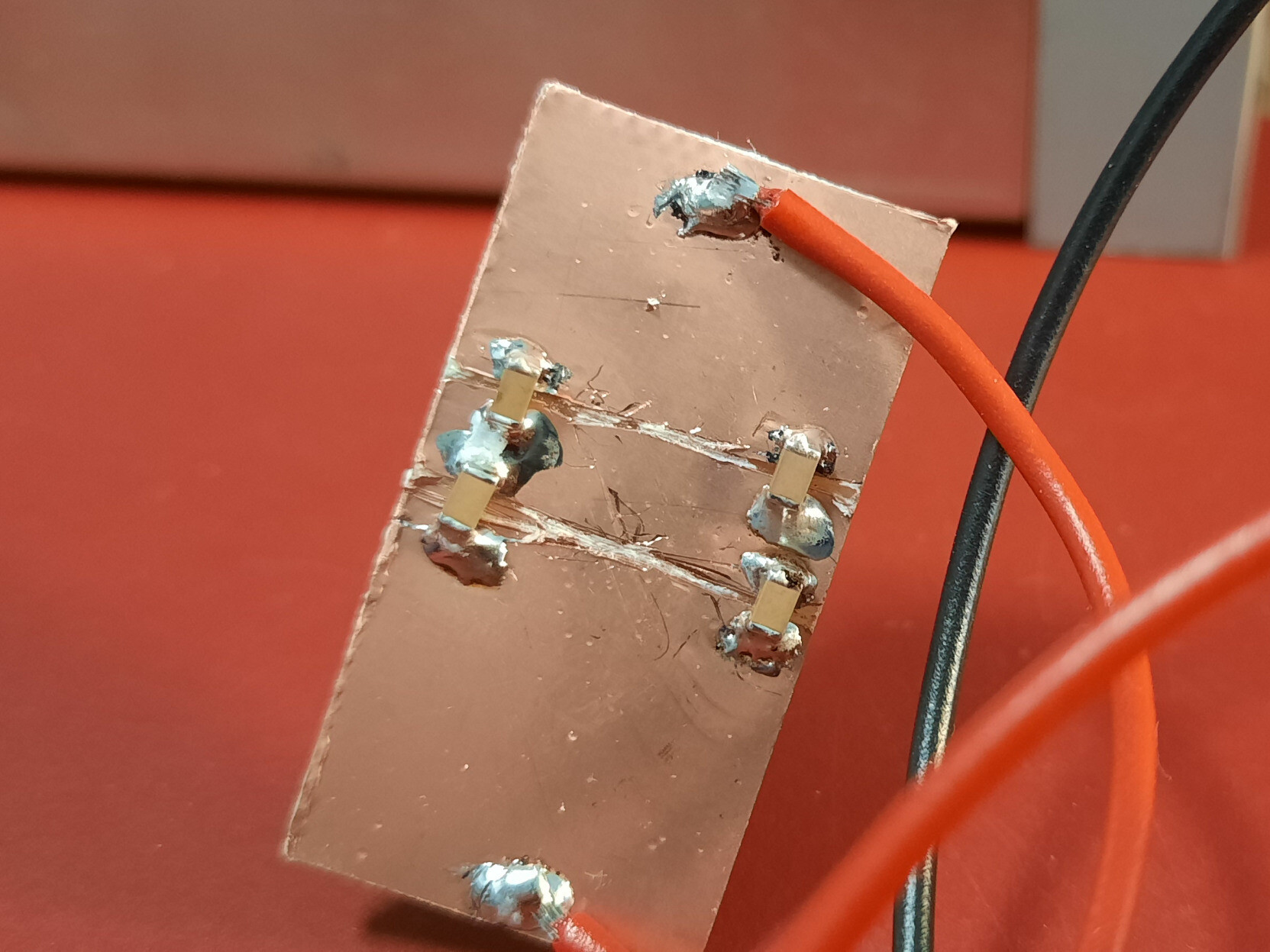

That's four 1206-package 100V 470nF MLCCs at a cozy 102 degrees Celsius, and that's with about 2 square inches of 35u copper for cooling. #electronics
