Foone🏳️⚧️ on Nostr: Going by the wikipedia pinout, pins 1,3,4,5 are connected directly (on both ports) as ...

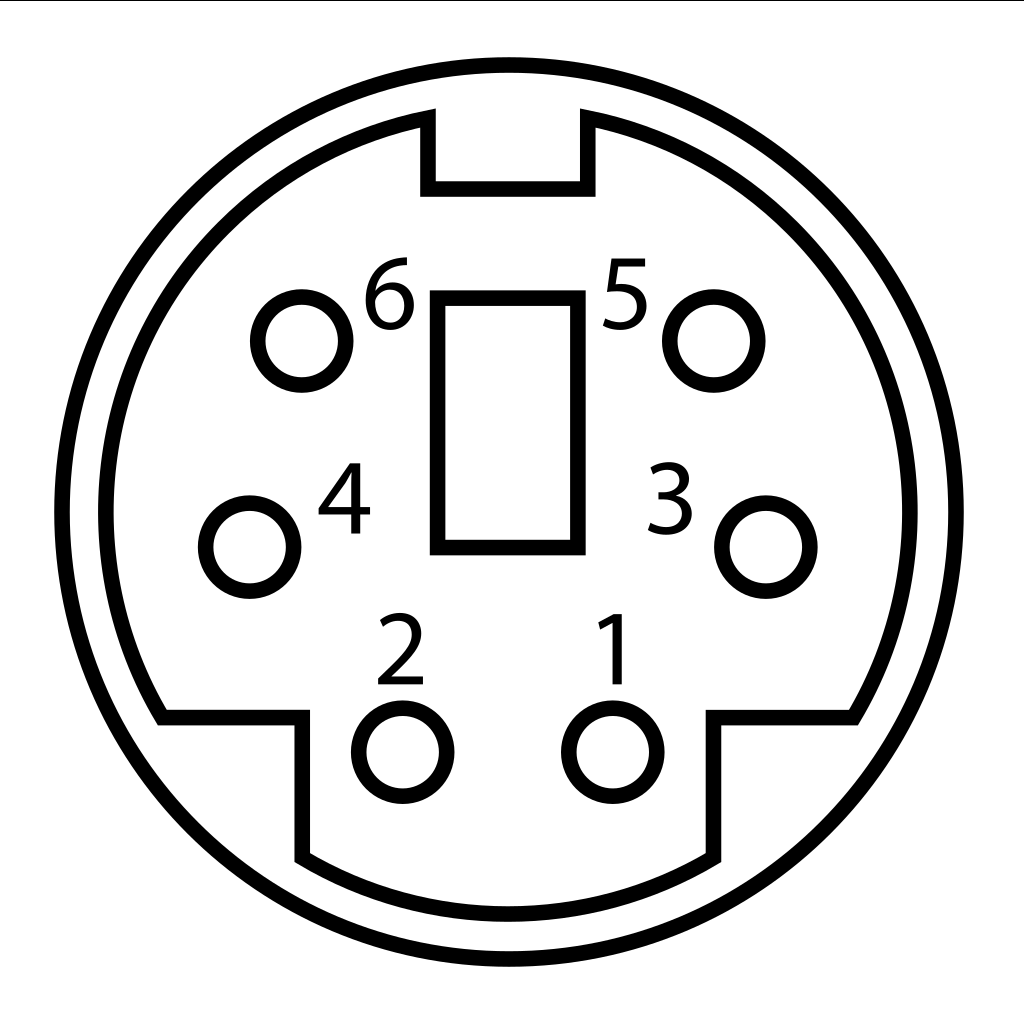

Going by the wikipedia pinout, pins 1,3,4,5 are connected directly (on both ports) as you'd expect from a keyboard splitter.
pin 6 is connected too, which doesn't make sense (that's clock data for a mouse on a splitter. there's no mouse here)
and pins 1 and 2 are commoned together. That's keyboard data and mouse data (splitter), which makes no sense.
